Products Rapier Looms Air Jet Looms Water Jet LoomsTerry Towel LoomsAir CompressorElectronic Jacquard

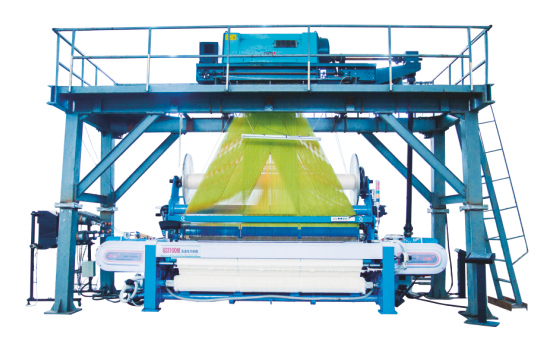

 Rapier LOOMS -  MODEL GA758 Image
Rapier LOOMS - MODEL GS1100

Specification


MODEL GS1100 - ( SPEED - 500 RPM-190CMS)

  • Weaving specifications:

    Weft density

    5-120 picks/cm

    Yarn count for Short fibre

    500tex (1.2Ne) 5 tex(120Ne)


  • The key to innovation:
    • The digit control system with high speed reed motion piling terry Mechanism ( Patent No. ZL 2012 1 0559088.1) .
    • Filling insertion at inching speed or high speed to handover the weft with accuracy and stability.
    • The picks finding linkage mechanism without disengaging Mechanism ( Patent No. ZL 2014 1 0375947.0) .
    • 16cm thickness wallboard for enforcing the stability
    • To make sure the battening up for broad width of loom.with the oversize diameter oscillation shaft.
    • New type YOUCHENG controls system with more humanization and more saving energy.
    • Super power servo main motor
    • YOUCHENG  prompts:
      " The mechanics of digit control piling terry has been got national patent of invention of China. It will cause you much trouble if you copy and/or buy imitation."



  • Specification parameter:

      • Width of loom: 220cm, 260cm, 280cm, 300cm, 320cm, 340cm, 360cm, 380mm.
      • Speed of loom: 280rpm to 480
      • Piling terry mechanism: The digit control system of high speed reed motion for piling mechanism No. ZL 201210559088.1).
      • • Filling insertion mechanism: high speed parallelism rotation of upside down pinion rack mechanism for filling picks.
      • Picking finding mechanism: original creative mechanism without disengaging device for picking finding with maintenance free. (patent: 201410375947.0
      • Battening up mechanism: Conjugate cam drive with oversize.laneter shaft (100mm) for battening up.
      • Guiding rail, rapier gripper, griper tape: the single suspension guiding hook, narrow tape, small gripper without hookup weft yarn to reduce the yarn broken, the yarn quality requirement is not high
      • Main motor: Super servo power motor without clutch and brake mechanism.
      •  Weft selection mechanism: stepping motor drive with fan shape 8 colors selectors.
      • Warp beam: Terry warp beam 1000mm, ground warp beam: 800mm
      • Control  system: YOUCHENG NEW 2016 VERSION with full digit control system the whole working any digit control for taking up, let-off and let off terry yarn separately, saving energy system, to calculate the datum to be set directly, touch screen interface, digit control for taking up, let-on tension, digit control for piling terry, auto-picking finding, stopping at picks fixed, auto-puling fringes, droppers for terry warp and ground warp to display separately, saving energy yo statistics of shift output with production efficiency for 30 days.
      • Processing edit: with computer for editing, datum modification at touch screen, transforming document with U disk.
      • Signal synchronization: to make communication and automatic circulation easier and simpler for editing and co-ordinate with jacquard.
      • Wallboard: 16cm thickness of wallboard for enforcing the stability
