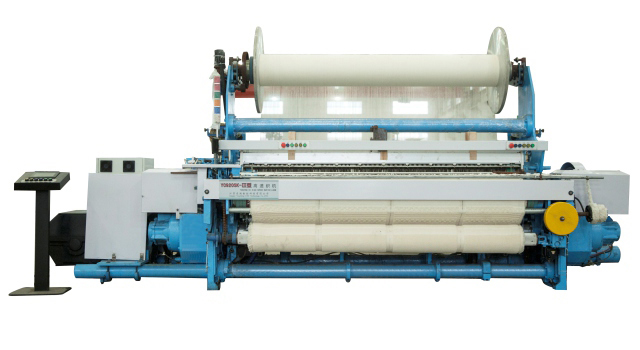

MODEL 920 SK-III ( FULLY SERVO WITH 5 SERVO DRIVE & BEAT UP WITH POSITIVE GEAR BOX - HIGH SPEED)
The key to innovation:
Touch screen setting with full digit Control system of YOUCHENG 2016 version
Superpower filling insertion for beating up mechanism, inflexibility relaying for weft yarn, more beating up force.
The newest digit control system for piling mechanism (national patent: ZL2013.10201793.9)
Super servo motor for driving main shaft
The longer filling insertion mechanism
Full digit control for pick finding mechanism national patent. ZL 2014103759470)
Specification parameter:
Shedding: With bottom dobby or electronic jacquard: (cm):200,230,260,280,300,320,340.360
Width of loom(cm) 200,230,260,280,300,320,340,360
Speed of loom:225rpm to 280rpm
Planet gear droven for beating up, inflexibility relaying weft yarn, rapier tape and rapier wheel contacting angle is 180 Planet gear droven for beatingun in degrees for high speed
Box-type feed Siey, big rock shaft support foot and width of reed sley in order to make sure beatingup force without deformation at center of loom.
Control system: To adopt YOUCHENG newest full digit control system 2016 version, to set all working angles on the panel directly, touch screen interface, digit control for take up and let off, digit control tension for terry beam, digit control for pilling terry, picks finding automatically, stop at fixed picks, pulling fringe automatically, the yarn broken of around beam and terry beam to display separately, energy saving system, 30 days production output and efficiency statistics.
Main power system: Super power servo motor driving system without clutch and brake mechanism. Mechanism simplification and less maintenance.
New box-type filling insertion mechanism, oil lubrication circulation automatically.
With panel to set terry height by digit. and adjust terry height by touch screen, such as wavy terry, saw-tooth of pros and cons terry, longitudinal high and low transverse high & low terry with 3-7 picks terry at random.
To adopt the electronic servo control system for let off of weft density to increase and decrease synchronously, performance sensitive and tension stability.
Digit control system reed motion with bearings structure of eccentric cam rotation for piling terry (Patent No. ZL 201310201793.9)
Adopt servo motor for let off , with digit control system for setting terry tension and satin fabric tension, to crease the tension for weaving satin fabric automatically in order to meet weaving satin fabric automatically in order to meet weaving satin fabric demand.
Picking finding mechanism: original creative new mechanism without disengaging device for picking finding with maintenance free. (patent: 201410375947.0)
Fixed - Picks stop function, to stop at any weft position at random, to stop the weft detecting device during puling fringe.
The large diameter fabric roller, to make sure without pulling terry and terry length consistent. With new type of protection board, appearance is novelty.
To set the piece of towel fabric, with automatic stop function when reaching the setting, with encoder meter length and the fixed length function
20 to 20 levers electronic dobby can be worked with jacquard machine.
6 to 8 color selection function
Terry beam: 1000mm, 800mm Ground beam: 600mm、0700mm
Maximum fabric rolling 550mm, YOUCHENG batching motion on request(constant tension control system
Electronics dropper: 4 rows for terry warp, 2 rows for ground warp.
