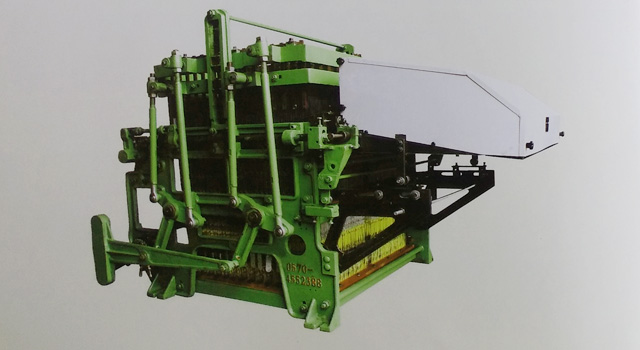

 XHST Series  Electronic Jacquard Image
Electronic Jacquard XHST

Specification


XHST Series Digitized Needle-Selecting Jacquard


Fabric suitability: suitable for most jacquard-weaving applications such as trademarks, ties, terry cloths, scarfs, decorative fabrics, curtain cloth, sofa cloth, bedclothes and clothing fabrics, etc.
Field of application: can be matched with kinds of Chinese or foreign rapier looms and towel loom.
Features: digitized needle-selecting jacquard (electronic-cylinder jacquard) is a product existing between electronic jacquard and mechanical jacquard. On the basis of mechanical jacquard, we replace the original mechanical pattern-card needle-selecting system with our self-developed digitized needle-selecting technology, which meets the rapid renewal need of weaving patterns. Meanwhile, we develop a control system with ARM as the control-core and automatic recoil degaussing circuit to accelerate the running speed and reliability of jacquard. Digitized needle selecting jacquard is an economical product with high cost performance.

Main Technical Parameters:

Item

digitized needle-selecting jacquard (electronic-cylinder jacquard)

Model

2900

2400

1900

1480

1344

600

Rows

16 Row Chinese standard

12 Row Korean Standard

Pitch Size

4 x4  mm

5.13x5.13 mm

Shed height

65mm-100mm

Rotate speed

150-200 RPM

Driving mode

Chain

Product Overall Size:

Model

Length (mm)

Width (mm)

Height (mm)

Actual hooks

XHST600

1500

810

1190

632

XHST1344

1500

1110

1190

1224

XHST1480

1700

920

1190

1480

XHST1900

1700

1050

1190

1980

XHST2400

1700

1220

1190

2464

XHST2900

1700

1360

1190

2960
