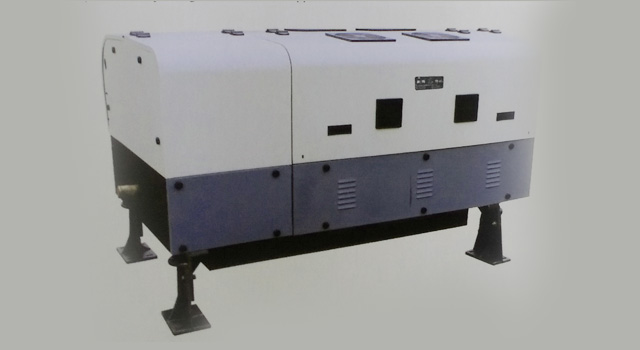

Fabric suitability: suitable for most jacquard-weaving applications such as trademarks, ties, terry cloths, Scarfs, decorative fabrics, curtain cloth, sofa clothe bedclothes and clothing fabrics, etc. Field of application: can be matched with kinds of Chinese or foreign rapier, water-jet, airjet and towel weaving machines. Features: This series of jacquard adopts high & low double shafts, easy to operate and maintain. It's synchronized with the loom through the drive of high-quality cardan shaft and fully enclosed spiral bevel gear box, and featured with smooth transmission, less noise and longer lifetime. It realizes mechatronical weaving by inputting weaving CAD design patterns to LCD screen controller, which is characterized with quick pattern-shifting, high pattern-controlling precision, easy management and flexible application.
Main Technical Parameters:
Item
Electronic Jacquard
Model
600~2688 hooks
Rotate Speed
200-500 / 200-500 rpm
Shedding Form
Double Lift, Clear bottom-open shed
Shed Height
Front shed 55-100 mm, back shed 90-120mm,adjustable
