Fabric suitability: suitable for most jacquardweaving applications such as trademarks, ties, terry cloths, scarfs, decorative fabrics, curtain cloth, sofa cloth, bedclothes and clothing fabrics, etc.
Field of application: can be equipped onto kinds of Chinese or foreigh mechanical jacquards.

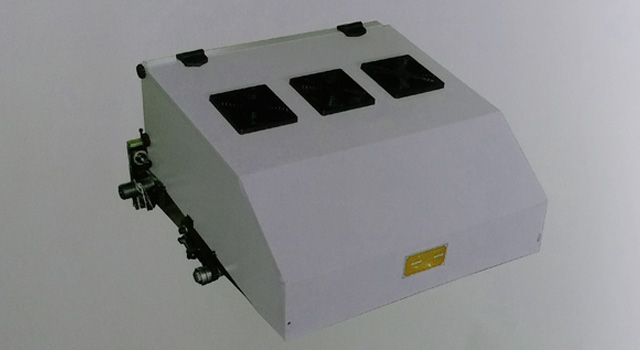

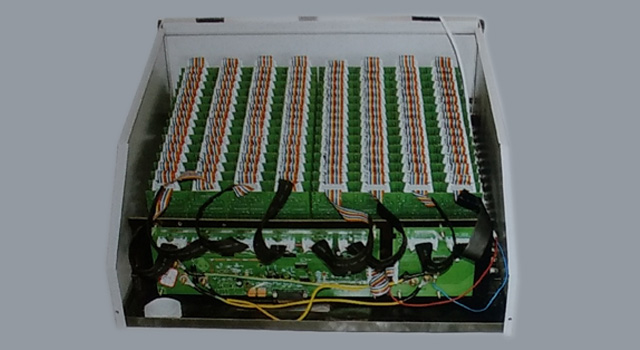

Features: The electronic cylinder adopts our selfdeveloped digitized needle-selecting technology instead of the original mechanical pattern-card needle-selecting system, manages to meet the rapid renewal need of weaving patterns. Meanwhile, we develop a control system with ARM as the control-core and automatic recoil degaussing circuit to accelerate the running speed and reliability of jacquard. Electronic cylinder an economical product with high cost performance.
Item |
Electronic cylinder |
|||||
Model |
2900 |
2400 |
1900 |
1480 |
1344 |
600 |
Rows |
16-row Chinese standard |
12-row Korean Standard |
||||
Pitch Size |
4 x4 mm |
5.13x5.13 mm |
||||
Rotate speed |
150-200 RPM |
150-200 RPM |
||||
Model |
Length (mm) |
Width (mm) |
Height (mm) |
Actual hooks |
DH600 |
500 |
560 |
400 |
632 |
DT1344 |
800 |
560 |
400 |
1224 |
DT1480 |
620 |
650 |
400 |
1480 |
DT1900 |
760 |
650 |
400 |
1980 |
DT2400 |
920 |
650 |
400 |
2464 |
DT2900 |
1060 |
650 |
400 |
2960 |
